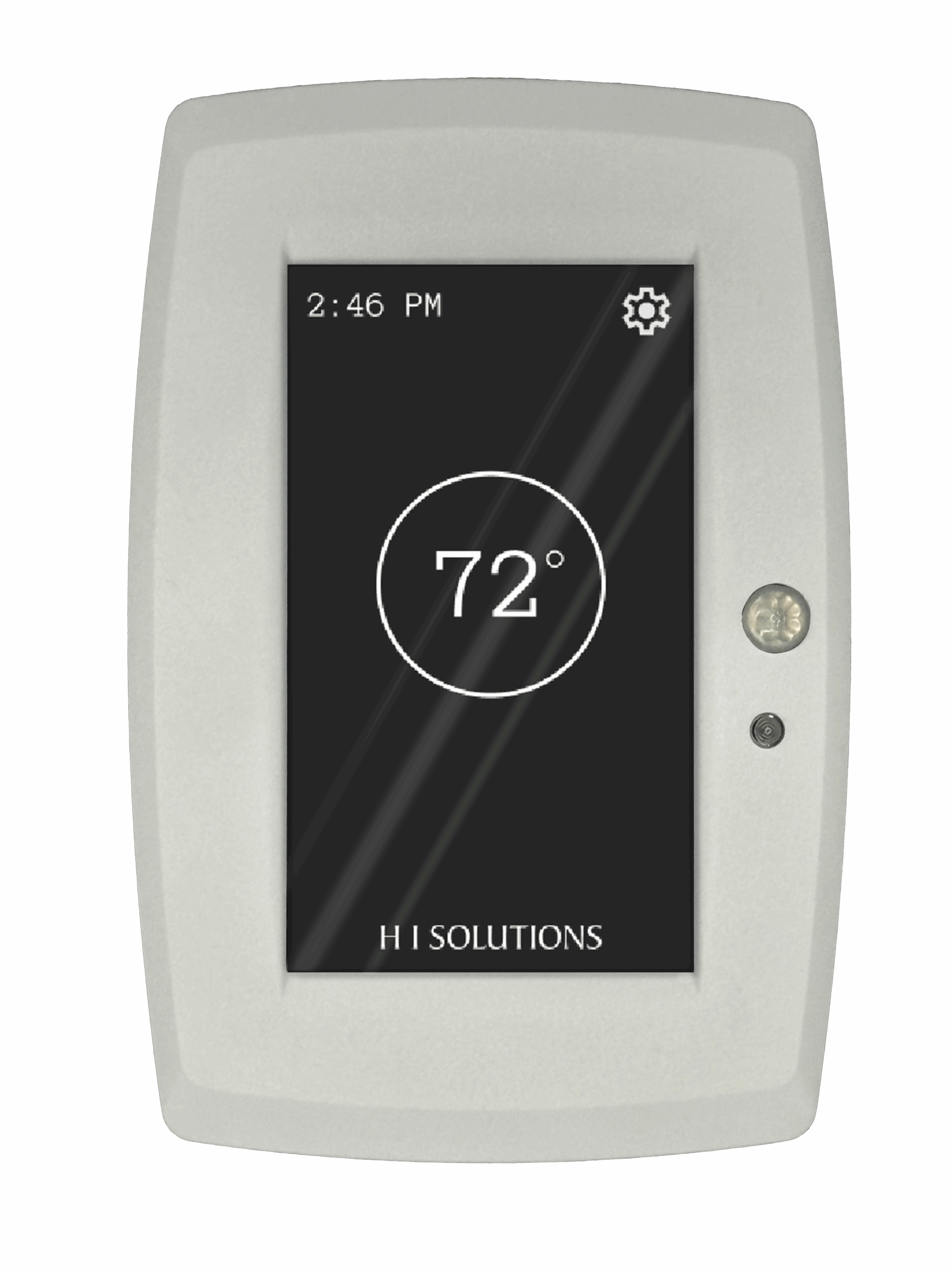

Stat-7
The STAT-7 is a communicating device designed for temperature monitoring and control applications in indoor spaces. In addition to space temperature, the sensor also measures relative humidity, CO2, air pressure, ambient light level, and motion. Digital outputs allow control of auxiliary equipment. Analog and digital inputs can monitor additional data.
Take control of your building operations
The Stat-7 gives you a complete picture of how your building is performing. In addition to tracking temperature, humidity, and pressure—key factors that impact comfort, energy efficiency, and equipment longevity—it also monitors overall air quality. The system can alert you when CO₂ levels begin to rise to unhealthy levels, helping you make timely adjustments to maintain a safe, comfortable environment for everyone in the building.
Specifications
Temperature Sensor
40°F to 120°F
CO2 Sensor
400 to 5000 ppm
Humidity Sensor
20% to 80%
Air Pressure Sensor
10 to 32 inHg
Motion Sensor
15 ft, 110 degrees
Power
24 Volts AC/DC
2 W
Dimensions
4″ x 6″ x 1″
Mounting
Designed to be mounted vertically on a junction box or wall.
Display
4.3” QVGA
Resistive Touch
